SupaScreen® Security Mesh

SupaScreen®, which is discrete and extremely strong, is manufactured with high tensile 316 Marine Grade Stainless Steel mesh supplied from Meshtec, the world leading supplier of security mesh screen.

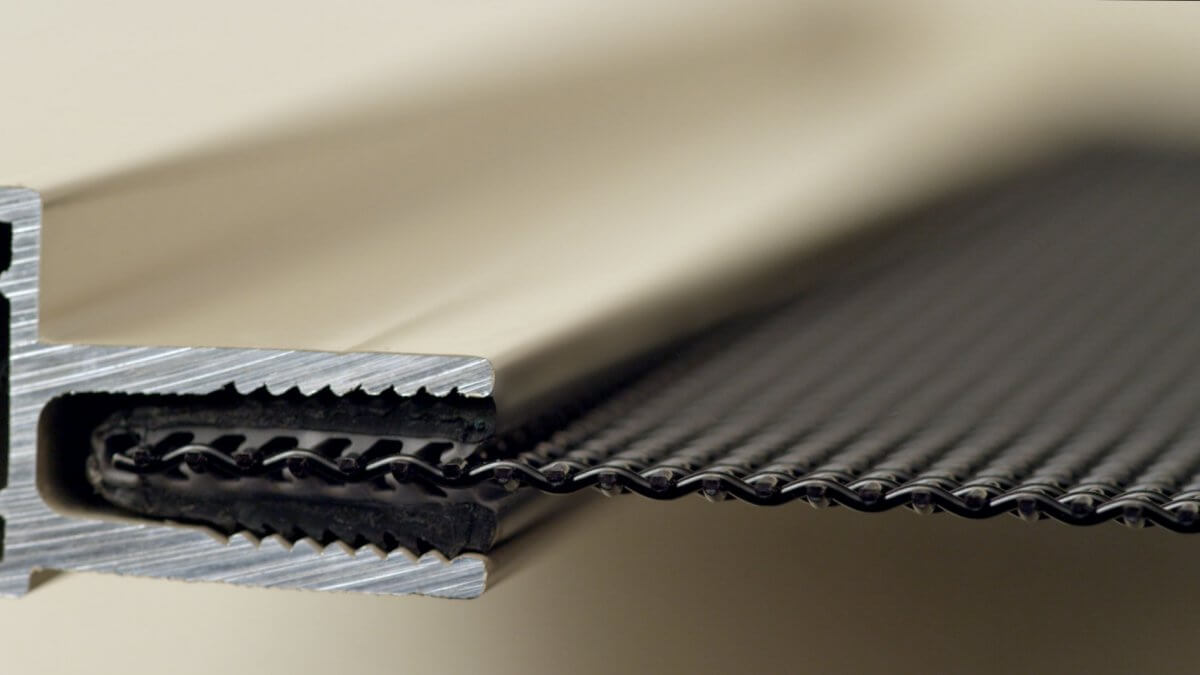

SupaScreen® security screen doors and window screens are assembled using a patented “pressure fit” mesh retaining system, eliminating the need for unsightly screws, rivets, pins or snap-ins to retain the mesh panel in the aluminium frame. While being extremely strong and able to withstand impact levels that far exceed the Australian standard for security screens, this technology also prevents the aluminium frame and 316 marine grade stainless Steel mesh from coming into contact with each other, thus resisting galvanic corrosion and increasing the product’s lifespan.

In January 2024, Goldco® Security made the ethical choice to use Capral Aluminium’s LocAl® Super Green Aluminium for all its SupaScreen® products, which is one of the lowest carbon primary aluminium options on the market, with carbon emissions at 4kg CO2e per kilogram of aluminium, significantly lower than the global average.

SupaScreen® is can be used for

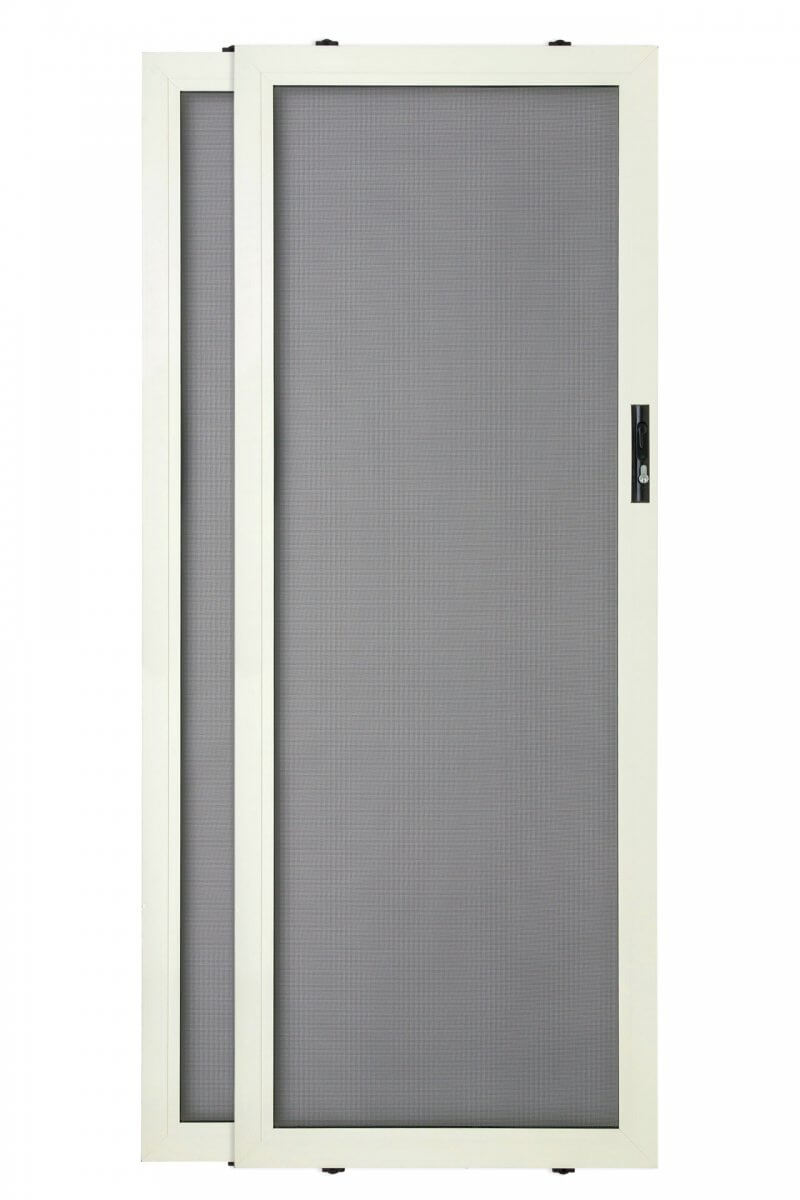

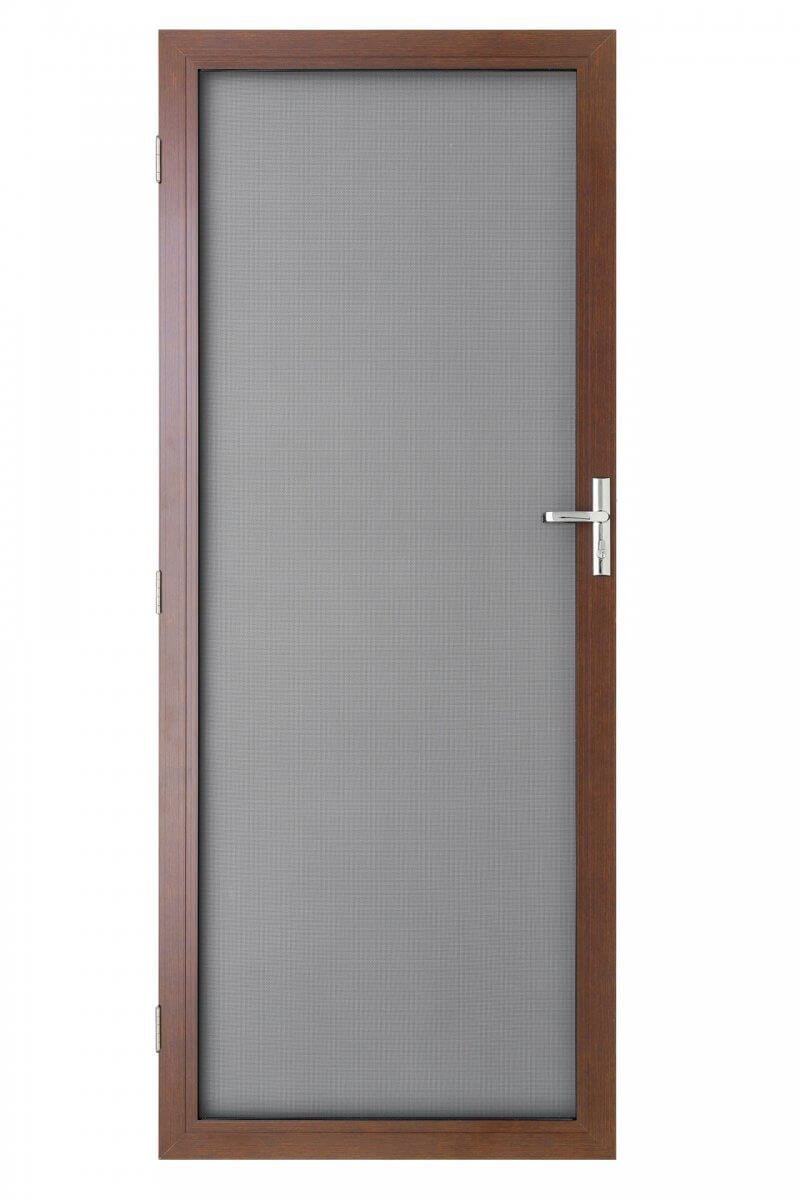

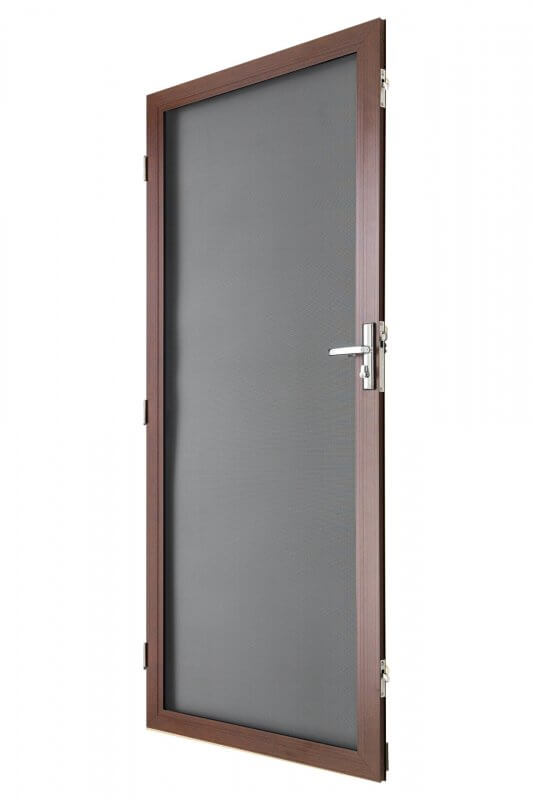

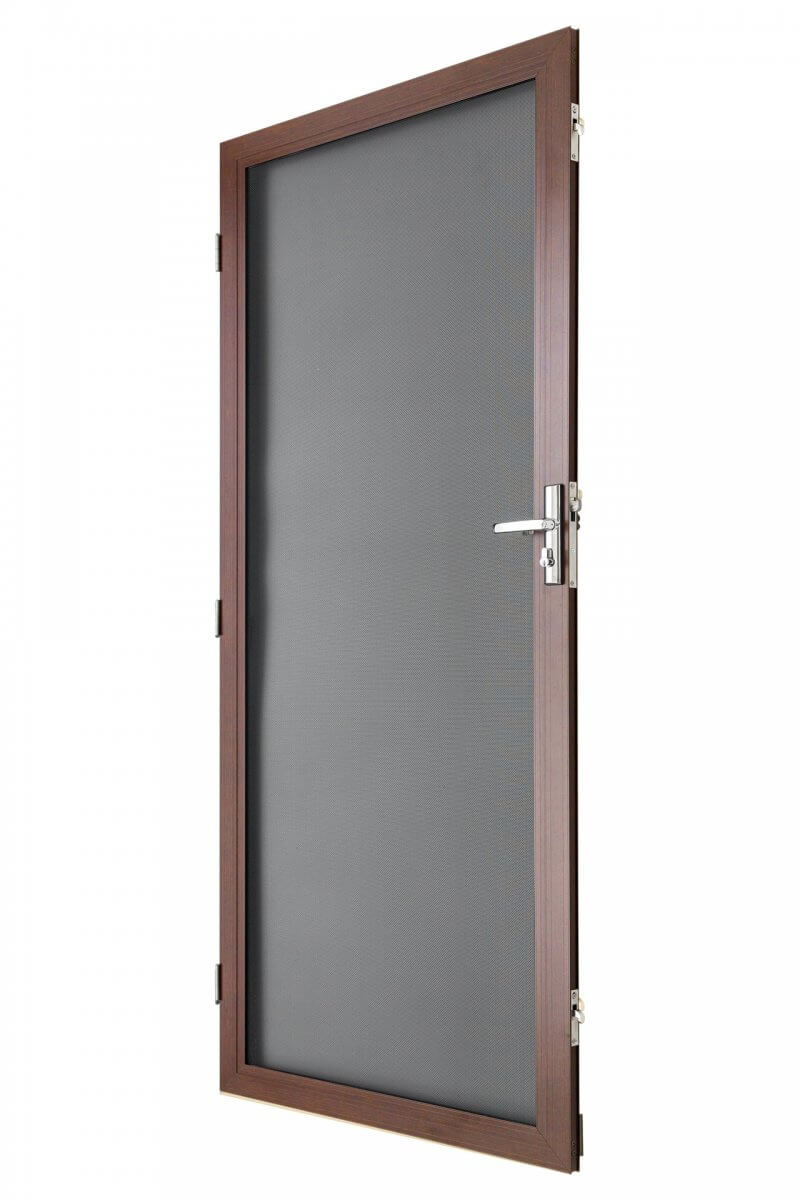

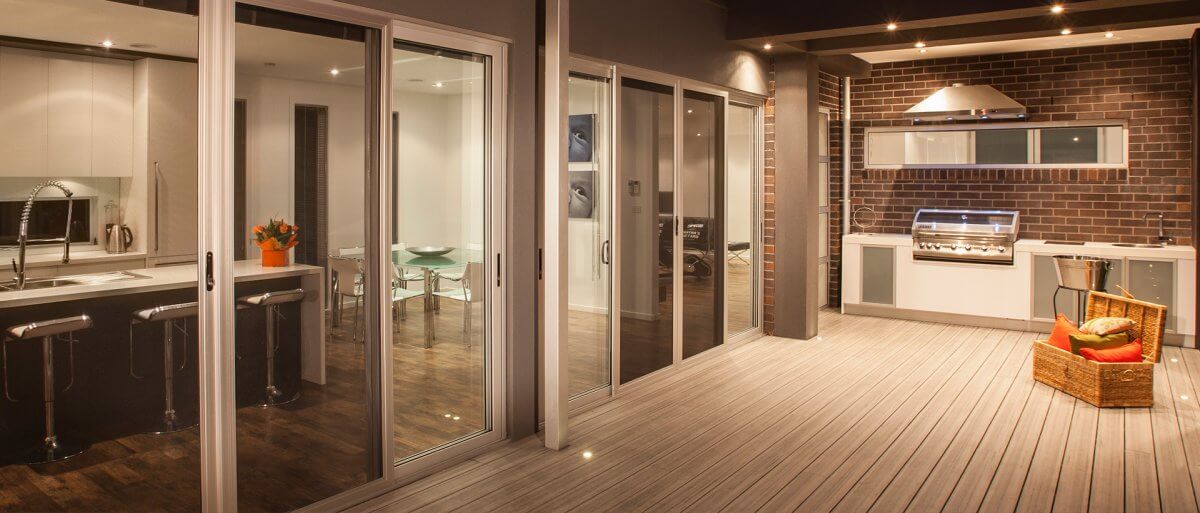

Doors, both hinged and sliding

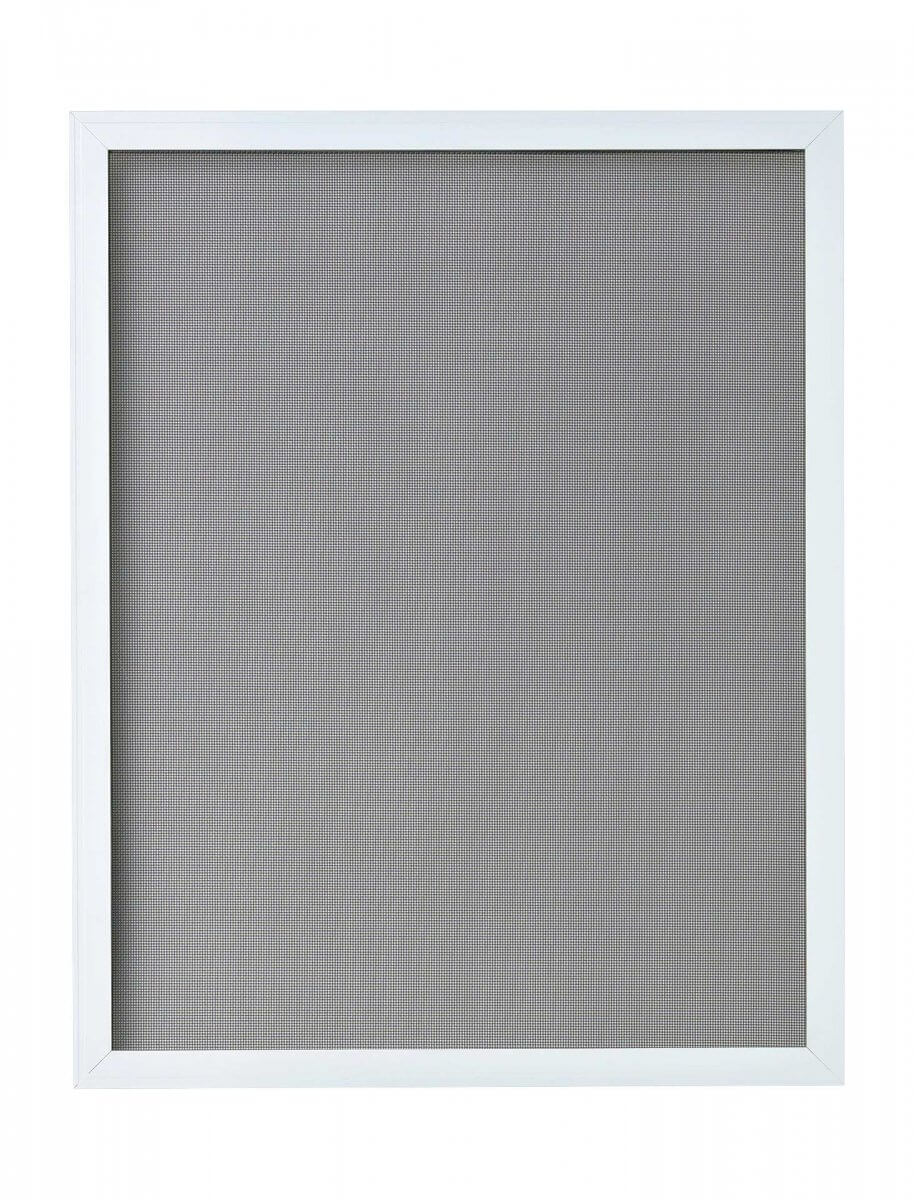

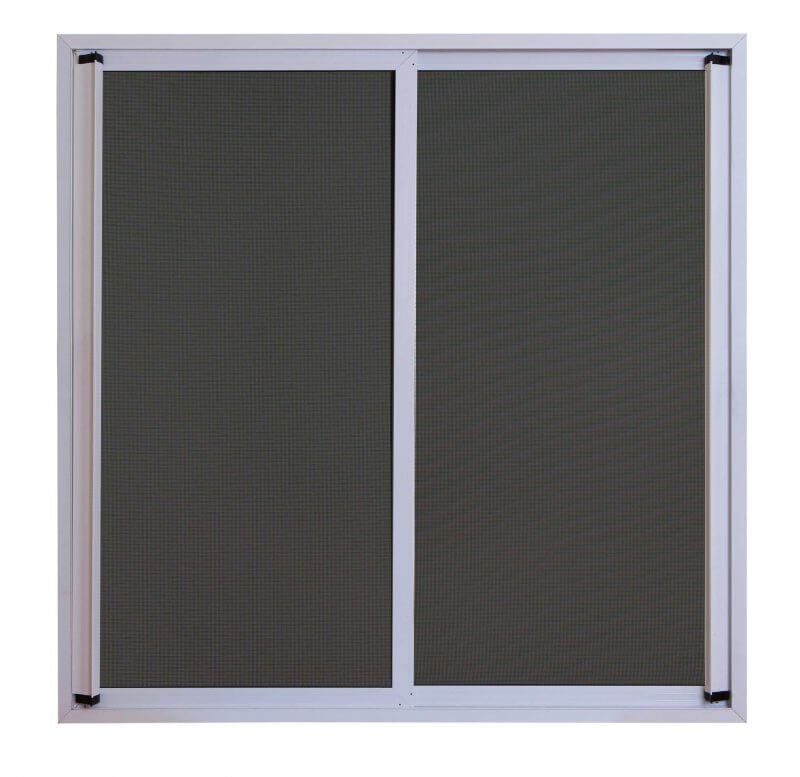

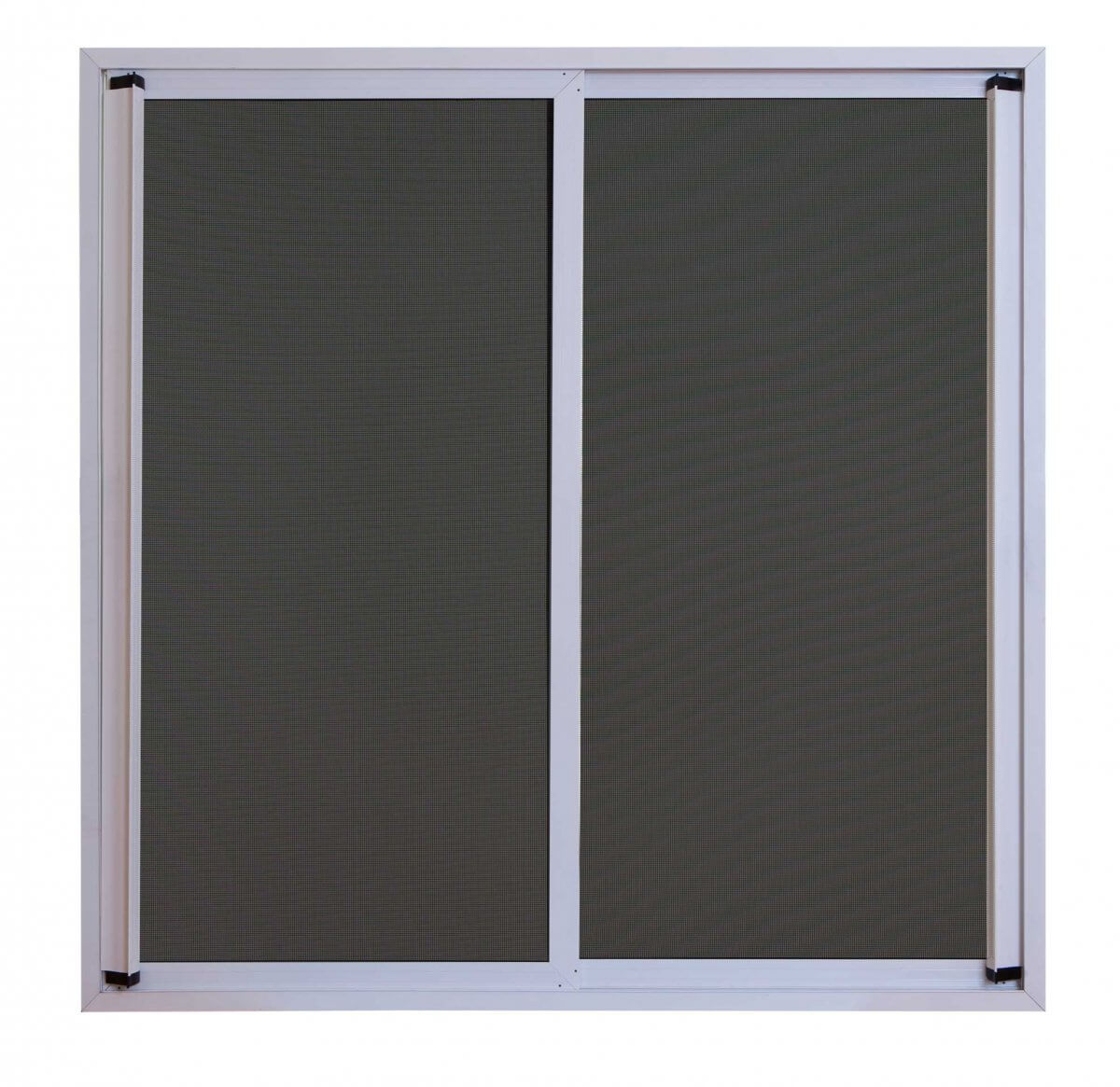

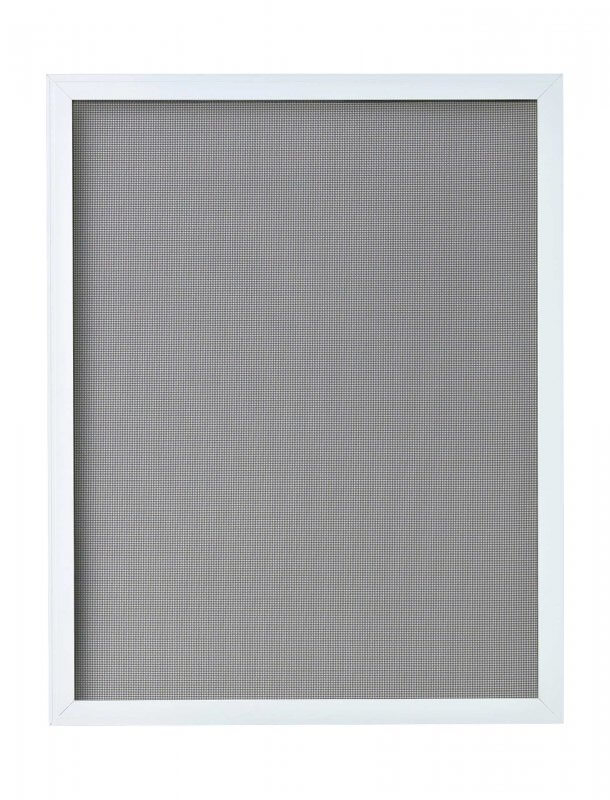

Fixed window panels

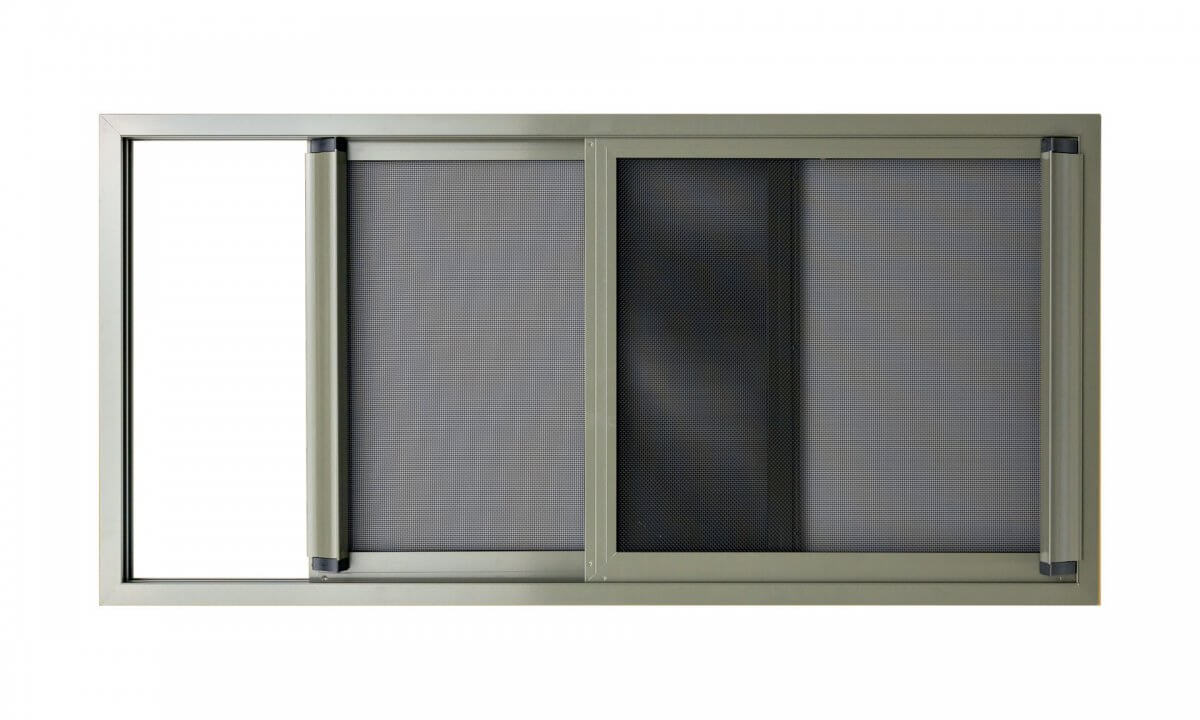

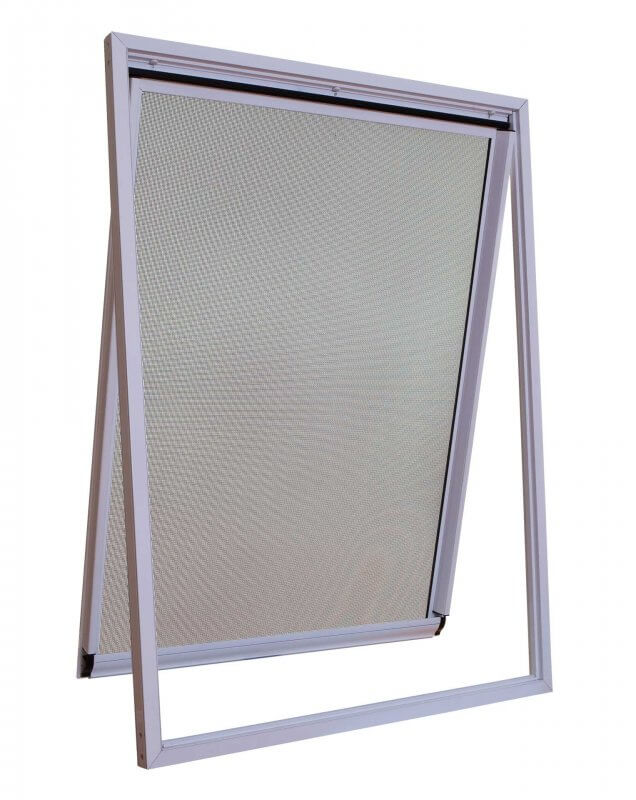

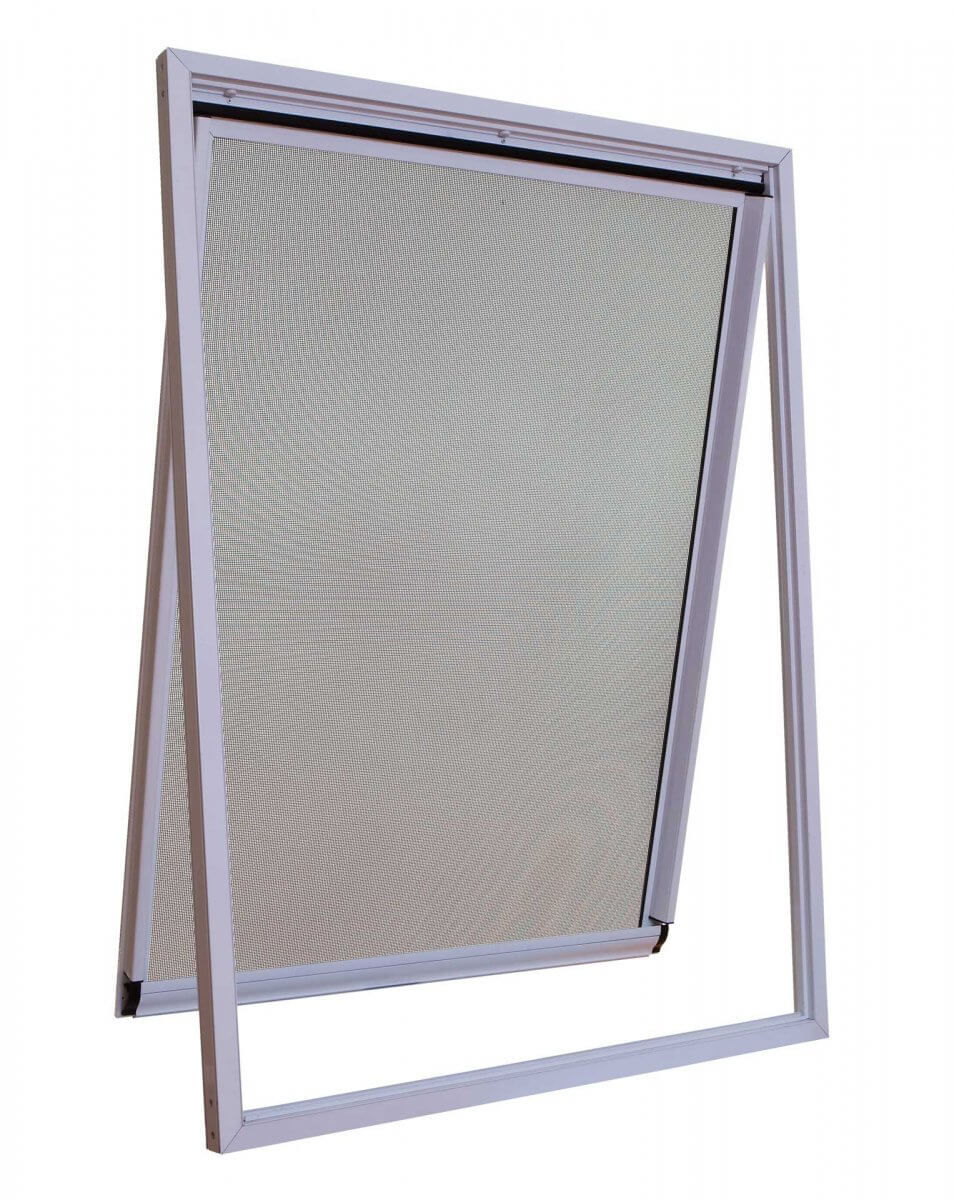

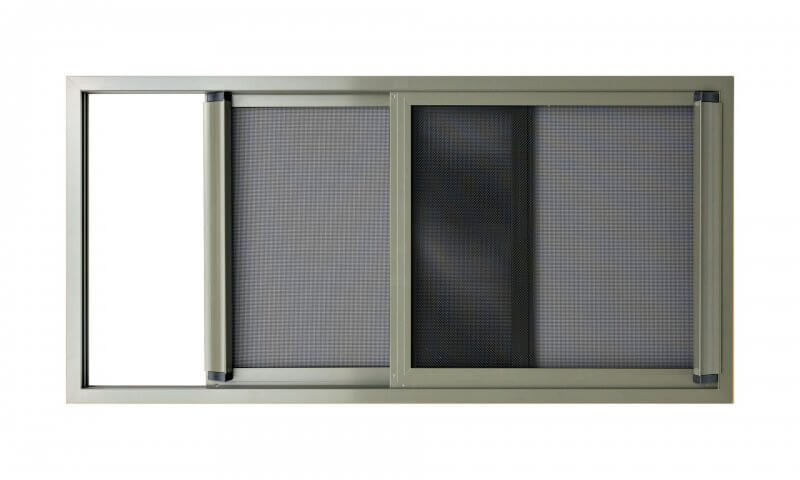

Sliding or hinged emergency escape panels

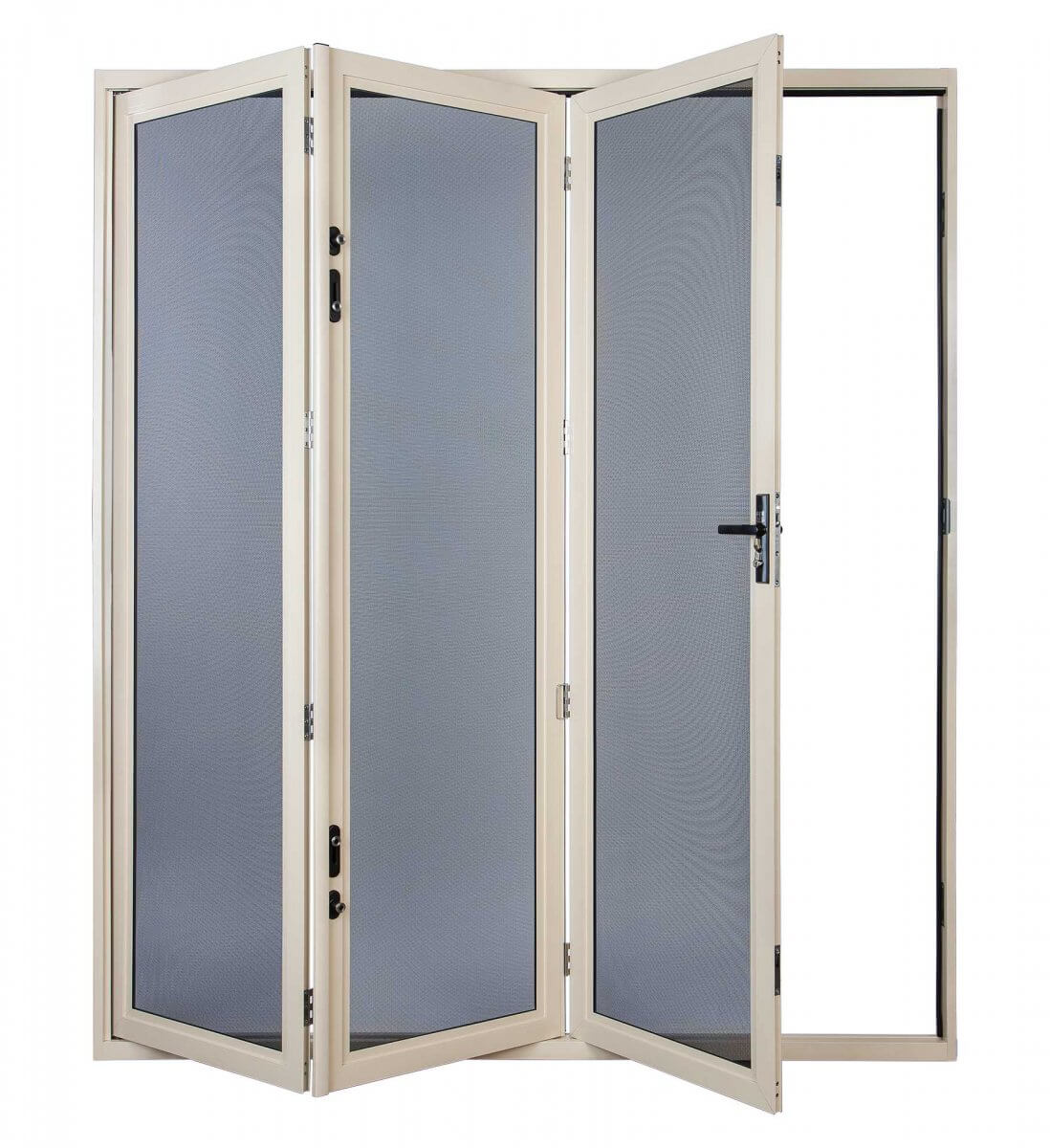

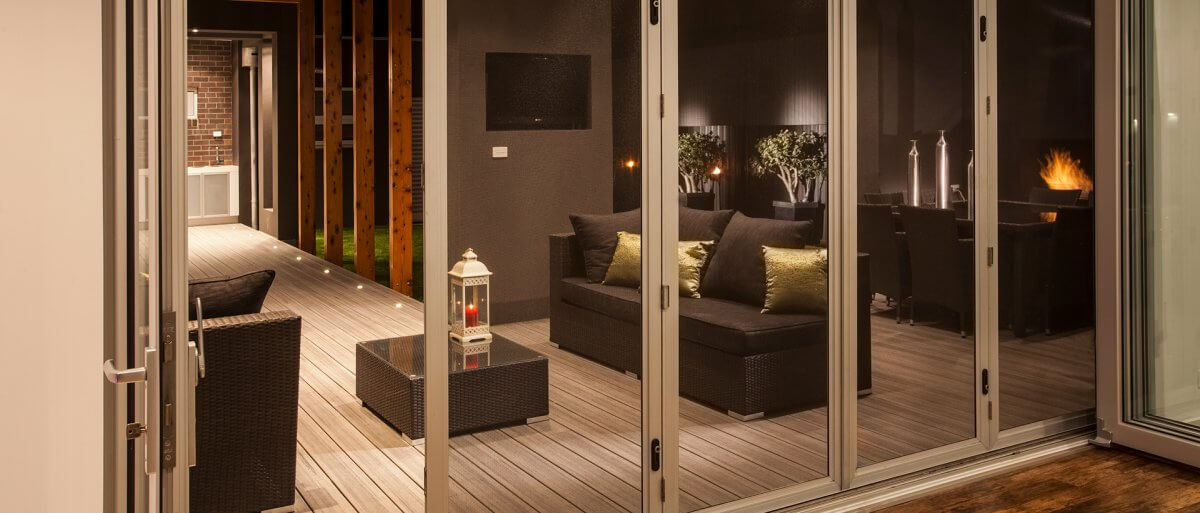

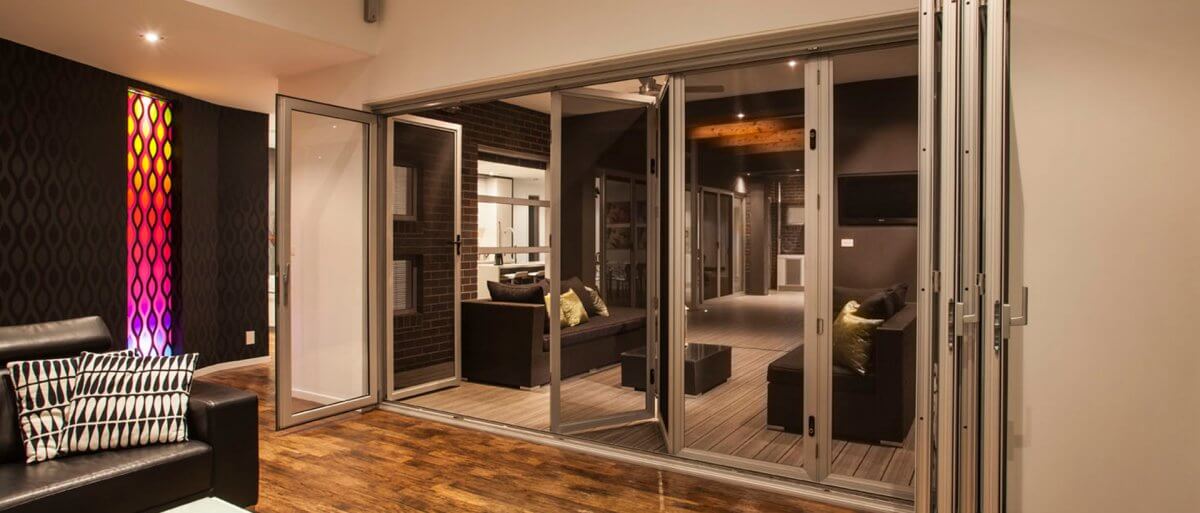

Bifold doors
Fire attenuation screens

Download Booklet

Key Features

Exceeds the Australian Standard AS5039-2008, including the dynamic impact, Jimmy and knife sheer tests
- Withstands a dynamic impact of 500 Joules 49 times versus the standard of 100 Joules 5 times
- Withstands a single impact of 2300 Joules, over 4 times stronger than some other products

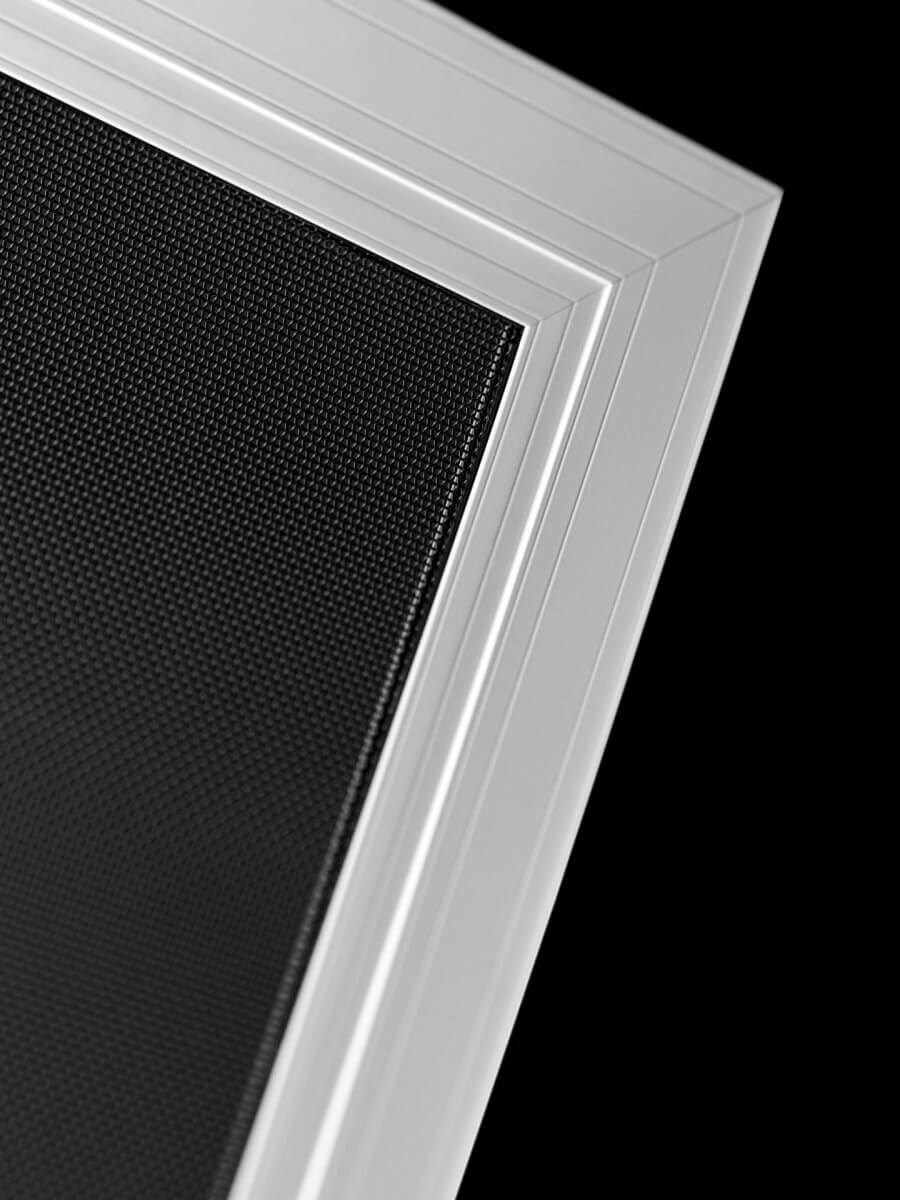

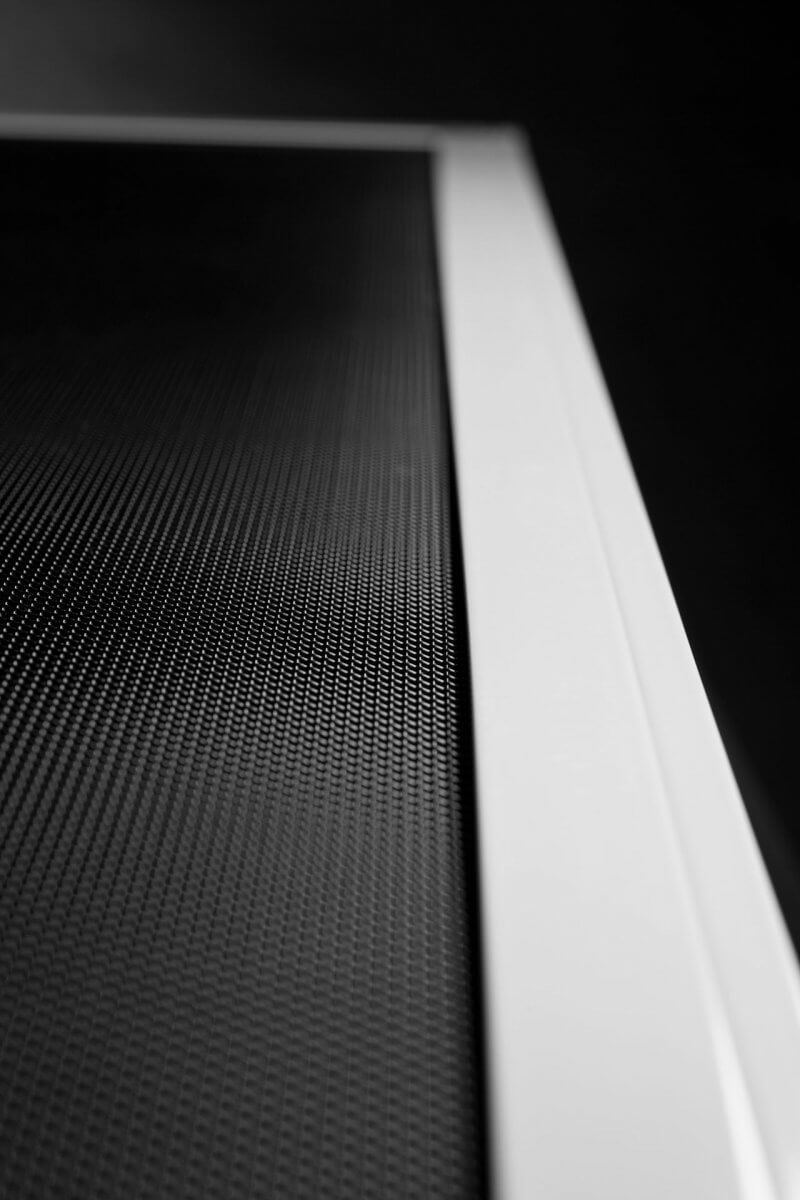

Sleek frame finish with no unsightly screws or snap-ins to retain the mesh

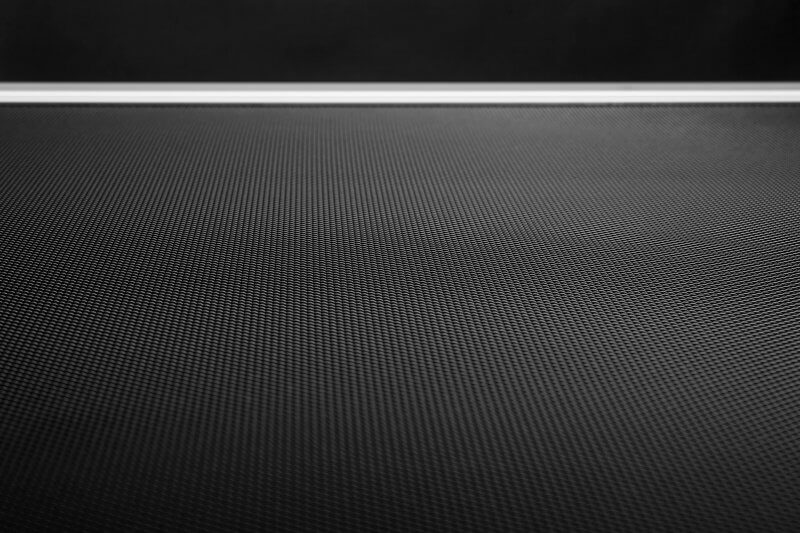

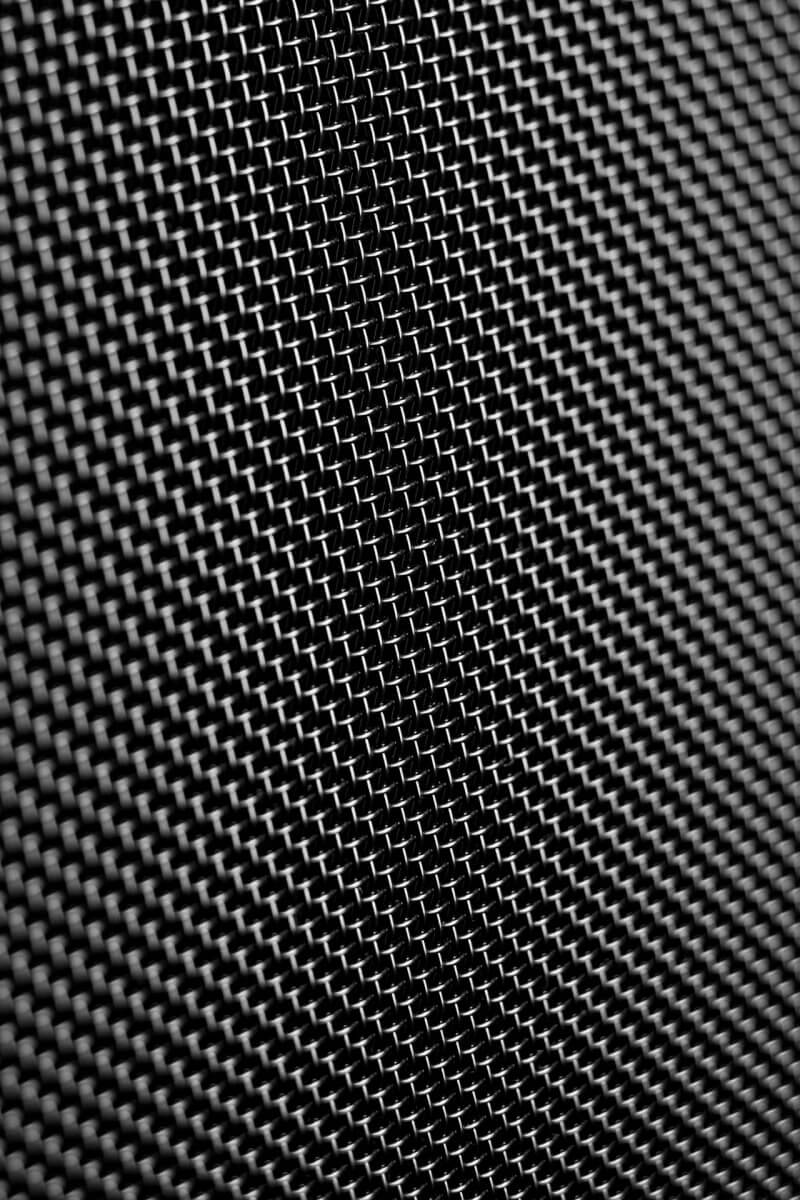

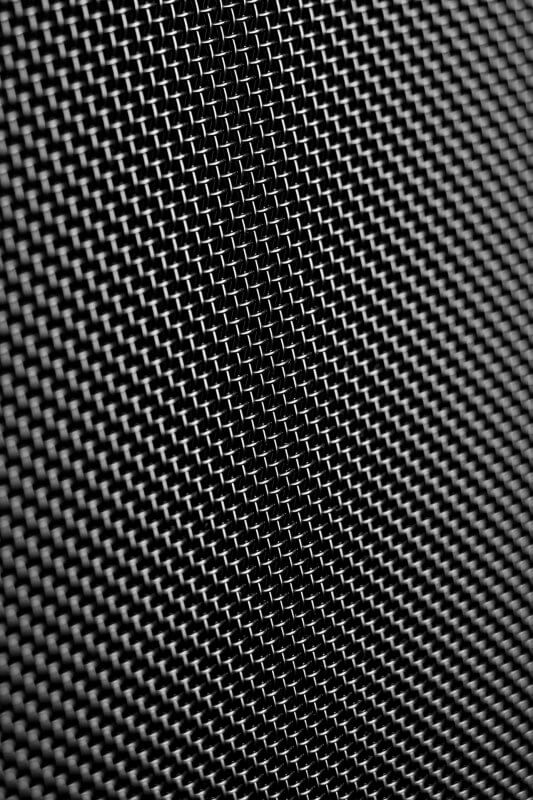

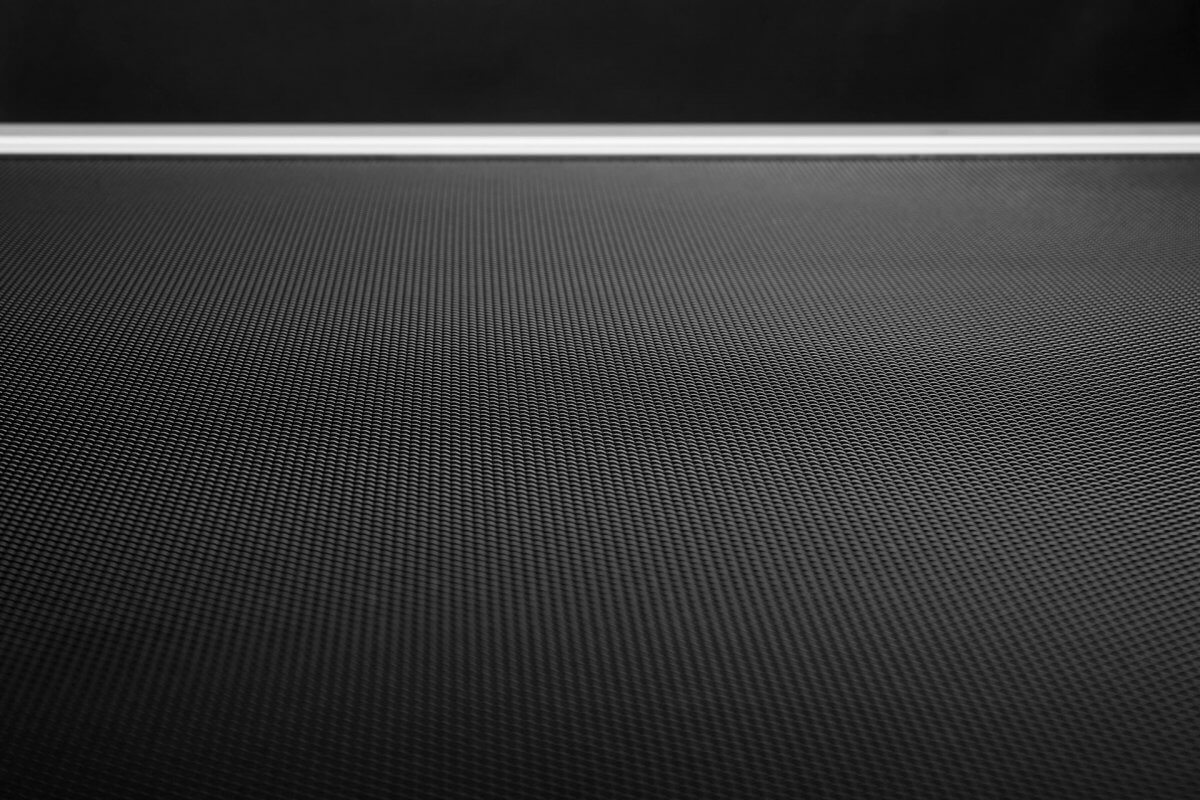

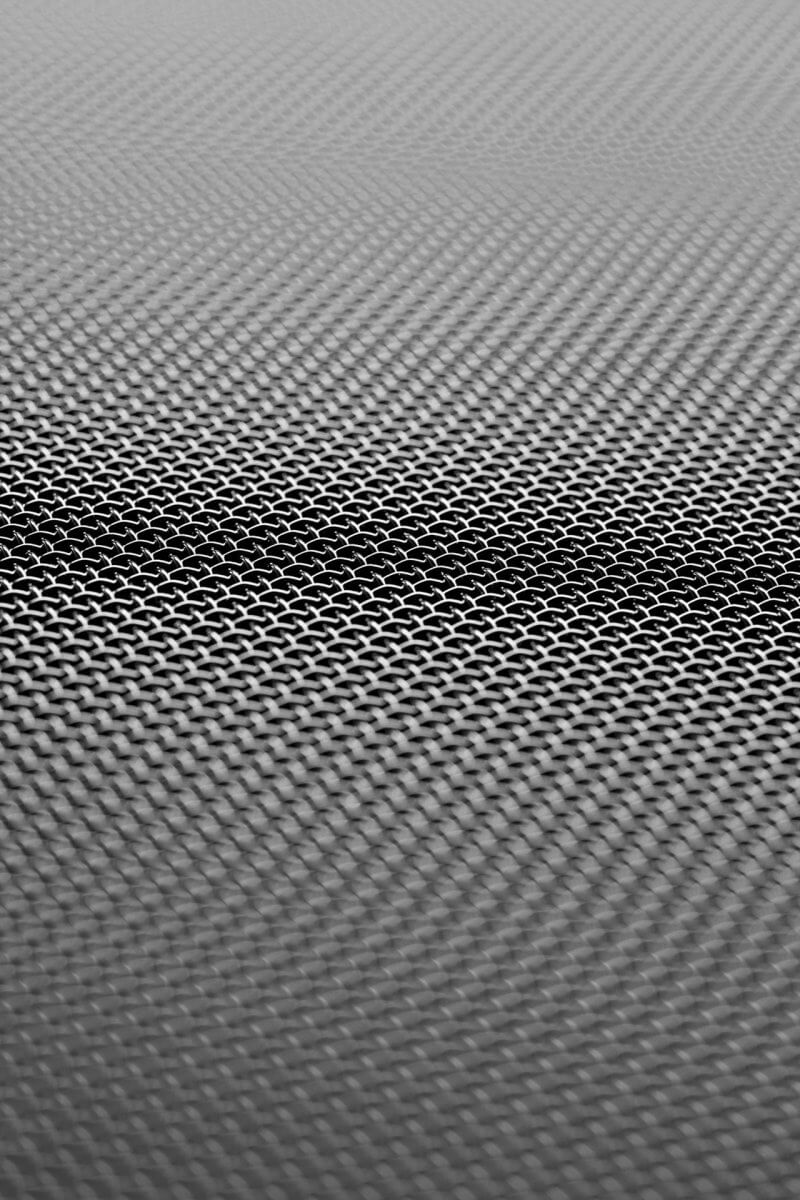

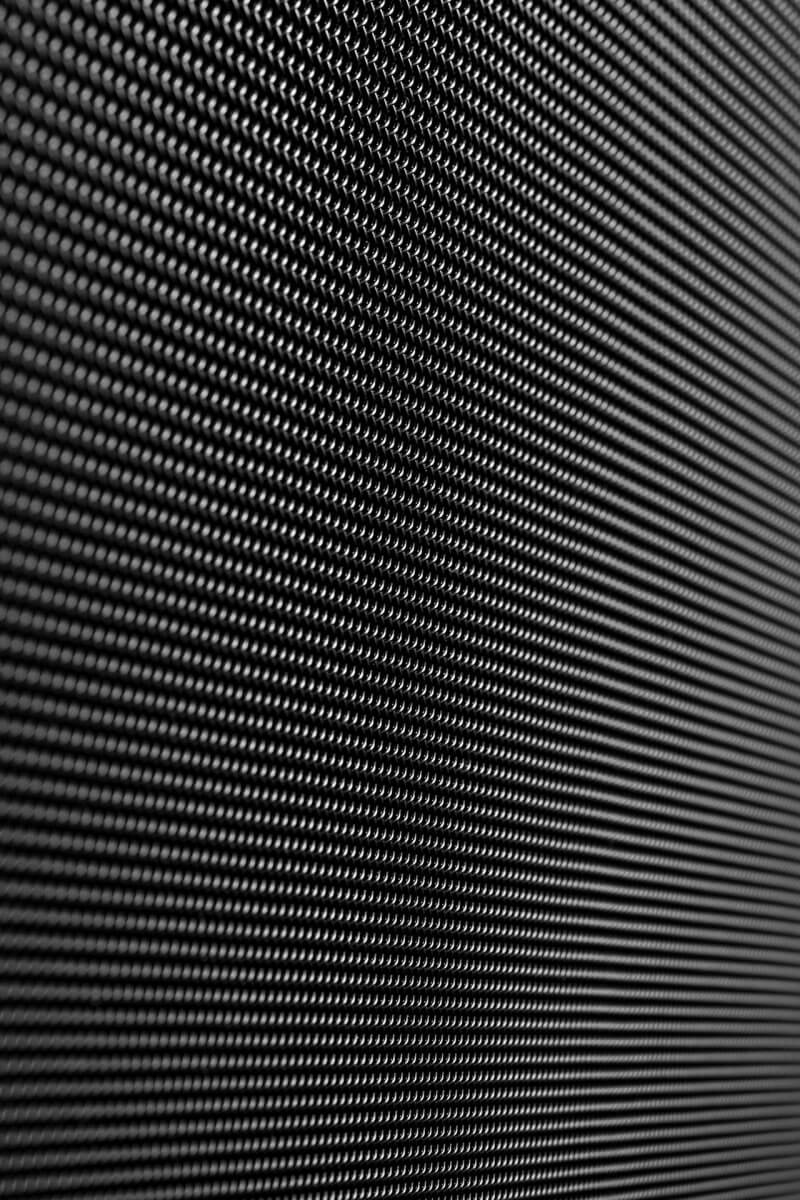

Manufactured from high tensile 316 marine grade stainless steel with a mesh thickness of 0.8mm
Provides superior protection against flying and crawling insects and pests with a screen aperture of 1.55mm^1,2
Offers superior ventilation / mesh open area of the mesh at 43%³
Gives a 156^o angular view
Achieves Bushfire BAL 40 and BAL-FZ (when used in conjunction with a window that has an FRL of at least -/30/- or conforming with AS1530.8.2)
Fire attenuation tested with 59% attenuation level for 121 minutes
Offers superior corrosion resistance equivalent to over 25 years of usage
- 3,000 hours under acetic acid salt spray test
- 10,000 hours neutral salt spray on mesh test
Provides a WERS rating for UV resistance and energy efficiency up to 56% improvement

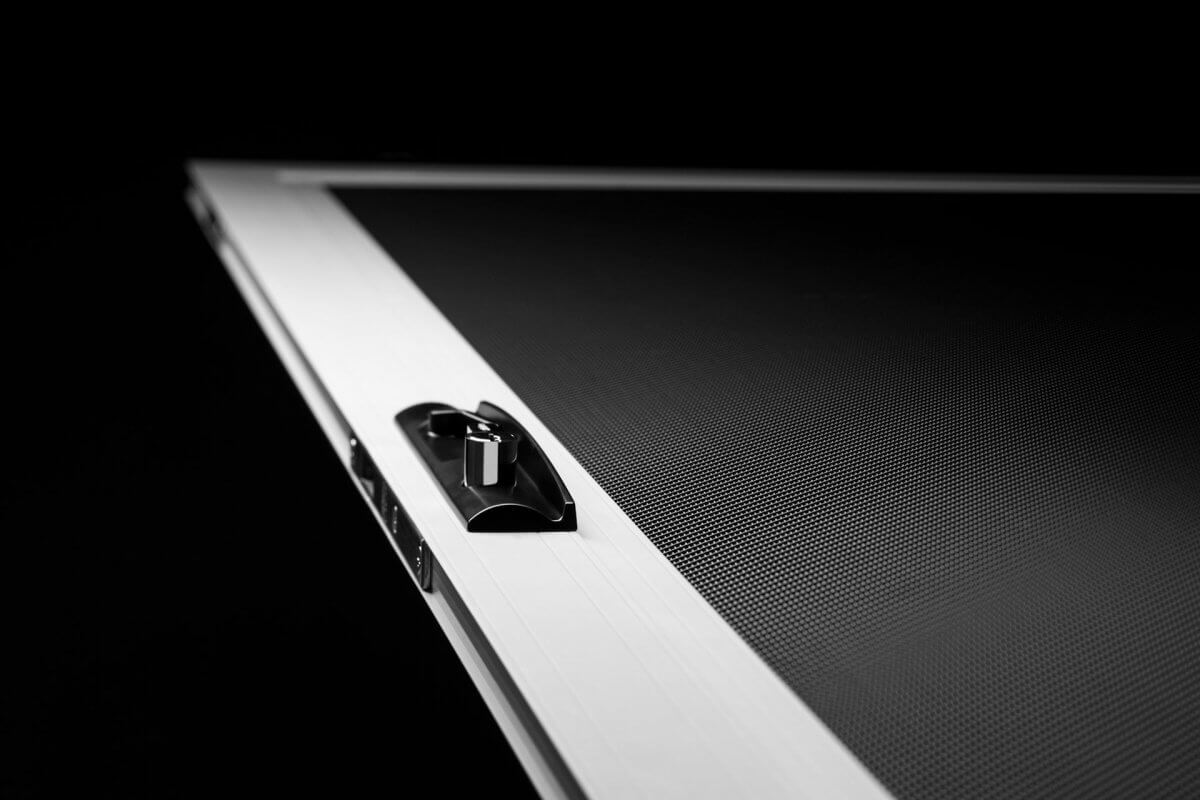

Fitted, as standard on all doors with a 3-point locking mechanism
Available in a range of frame colours
Comes with a 16-year corrosion warranty

References

Insect or security mesh provides an effective barrier to insects larger than the stated aperture of the mesh. Insects smaller than the stated aperture may not be impeded.
Based on average open area from mesh supplier’s report
Based on average wind tunnel testing from mesh supplier

Key Benefits

Enhanced Security: Offers a superior level of security, giving homeowners peace of mind.
Durability: Long-lasting due to its high-quality materials and resistance to environmental factors.
Aesthetic Appeal: Maintains the look of your home or business with its sleek design and clear visibility.
Comfort: Enhances comfort by allowing air flow and light to enter, while keeping insects and other pests out.
Energy Savings: Contributes to energy efficiency by improving natural ventilation and reducing reliance on air conditioning.

Applications

Residential Properties: Used for doors and windows to provide security while allowing airflow without compromising the property’s street appeal
Commercial Buildings: Provides high levels of security and fall protection from window openings where aesthetics is important. In addition, SupaScreen® can be used as Fire Attenuation Screens in buildings to prevent the spread of fire.
Public and Government Facilities: Can be used in public and government buildings and infrastructure projects where high security and durability are important, such as schools, hospitals, train stations, defence and government buildings.
